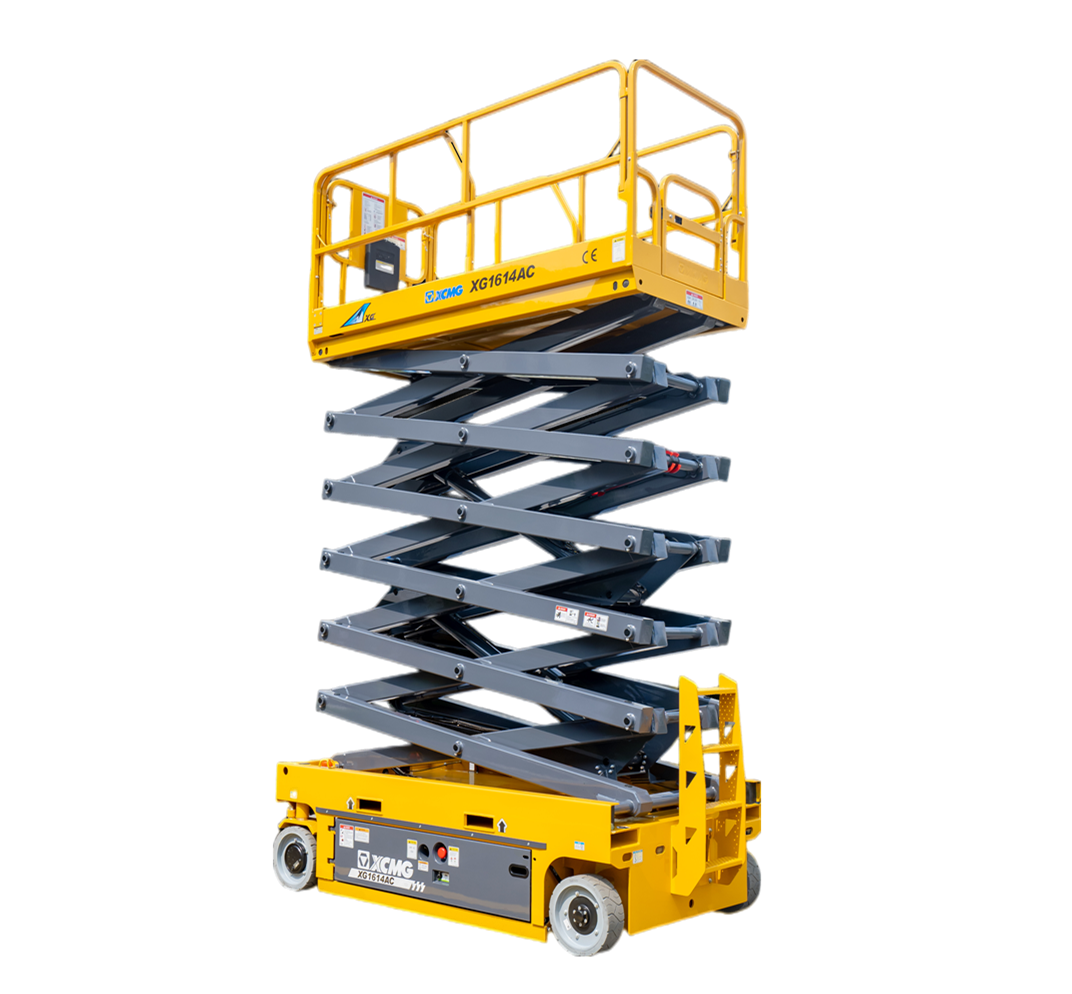

XG1614AC(CE)

PARAMETERS
Item
Load capacity
Load capacity of extended platform
Max.Occupant Capacity
Max.Working height
Max.Platform height
Overall length(no ladder)
Overall width
Overall height(platform folded)
Working platform dimension(Length x Width)
Length of extension platform
Min.ground clearance(pit protector rising/descending)
Wheel base
Min.turning radius(inner/outer wheel)
Driving motor
Lifting motor
Max.Traveling speed at low level
Max.Traveling speed at high level
Lifting/Descending duration of platform
Max.gradeability
Tilt warning angle (side/front and rear)
Battery
Charger
Tire specification
Total machine weight
Unit
kg
kg
m
m
mm
mm
mm
mm
mm
mm
mm
m
kW
kW
km/h
km/h
s
%
°
v/Ah
v/A
kg
Parameter
350
115
2
15.8
13.8
2630
1390
2175
2640×1120
900
77.5/20
2240
0/2.65
0.87
4.5
4.0
0.8
65~82/61~80
25
1.5/3
4×6/280
24/30
381×127
3680
