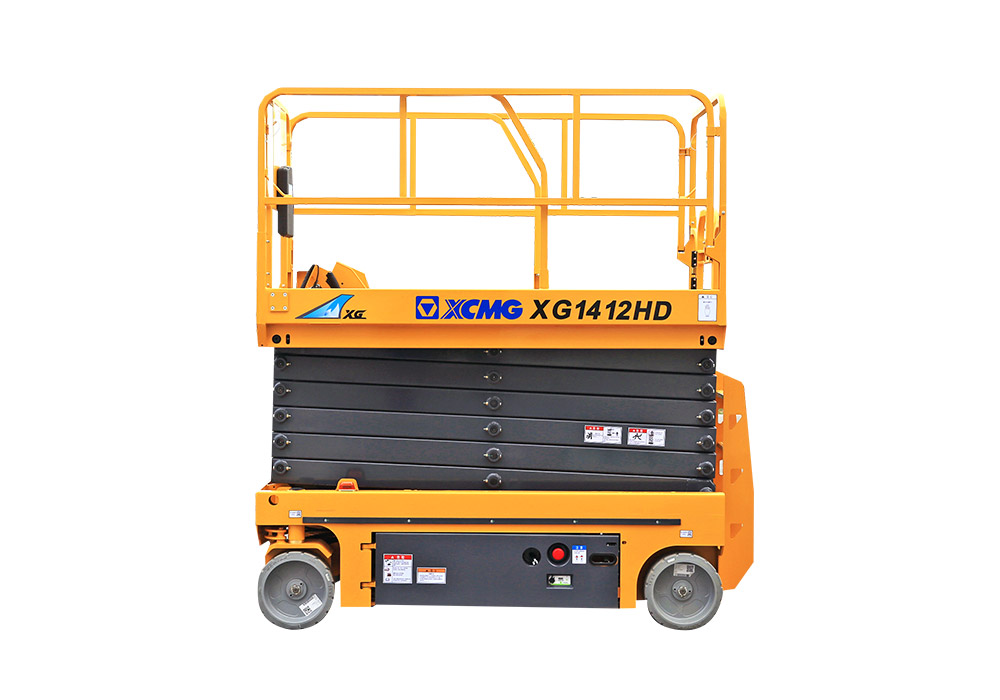

XG1412HD

PRODUCT FEATURE

The XG1412HD scissor lift is a new type of aerial work platform developed and produced by XCMG for construction. The operating height of the machine is 14m,overall width is 1.17m,rated load is 320kg,and the maximum gradeability is 25%.The machine has a compact construction, advanced performance and complete safety protection.It can be widely used in factory building,warehouse,airport,station and other industries due to zero pollution to environment,steady lifting,easy operation and maintenance.


Product performance advantages and characteristics

Efficient and energy-saving power driving system results in zero emission and less noise;non-trace tires enable the machine to work in closed environment,such as office building,hospital and school,which reduces impact on environment to the minimum.

Safety protection mechanism including pit protection mechanism together with self-designed safety control system meets customers’ needs on safety,reliability and intelligent functions via human-concerned design,complete protection and rich options.

The working platform can be expanded and contracted, and has a larger working space. With a foldable platform enables easier transport and scene change.

Unique "zero turning radius" design, which can be used flexibly in narrow spaces.

Achieving a maximum load of 320kg, leading the industry.

The maximum traveling speed is 4km/h,with 25% gradeability,resulting in easier driving.

PARAMETERS
Item
Load capacity
Load capacity of extended platform
Max.Occupant Capacity
Max.Working height
Max.Platform height
Overall length(no ladder)
Overall width
Overall height(platform folded)
Working platform dimension(Length x Width)
Length of extension platform
Min.ground clearance(pit protector rising/descending)
Wheel base
Min.turning radius(inner/outer wheel)
Lifting motor
Max.Traveling speed at low level
Max.Traveling speed at high level
Lifting/Descending duration of platform
Max.gradeability
Max. Inclination(side/forward and backward)
Battery
Charger
Tire specification
Total machine weight
Unit
kg
kg
-
m
m
mm
mm
mm
mm
mm
mm
mm
m
kW
km/h
km/h
s
%
°
v/Ah
v/A
-
kg
Parameter
320
115
2
13.8
11.8
2480(2270)
1170
2600(2060)
2275×1120
900
100/20
1877
0/2.3
4.5
3.2
0.8
45-70/52-78
25
1.5/3
4×12/300
24/30
381×127
3100
