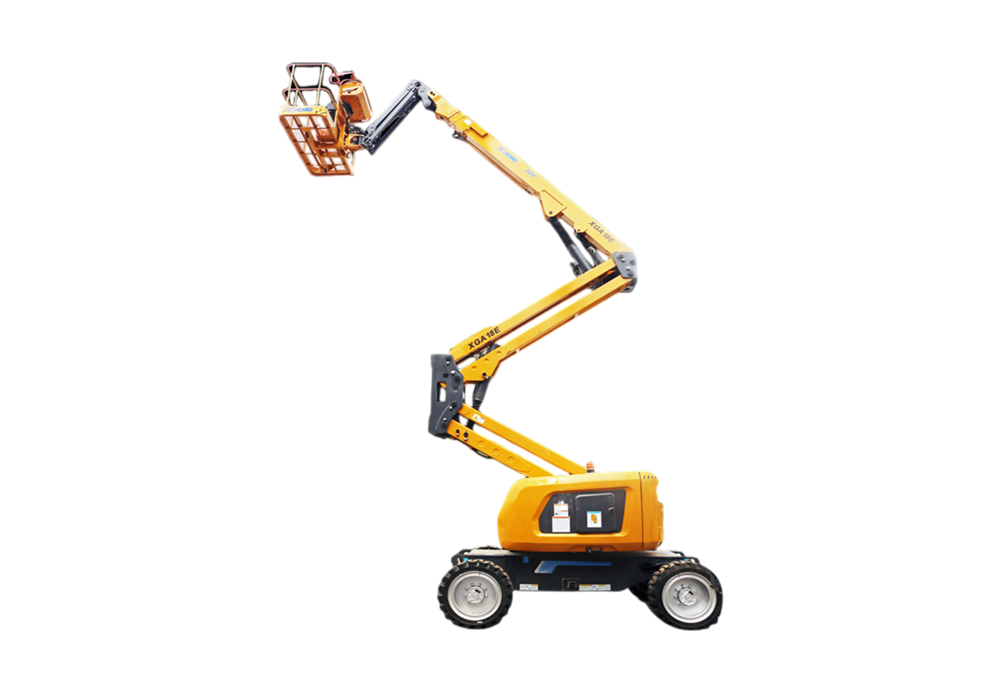

XGA18E(CE)

PARAMETERS
Item
Max. Working Height
Max. Platform Height
Max. Working Range
Max. Load Capacity
1st Boom luffing Range
2nd Boom luffing Range
Fly Jib Luffing Range
Rotation Angle of Turntable
Rotation Angle of Platform
Max. Tail Wagging
Max. Travel Speed
Min. Turning Radius
Min. Ground Clearance
Max. Grade Ability
Tire Specification
Engine Model
Rated Power of Engine
Battery Specification(V/Ah)
Main Motor Specification(kw/V)
Drive Motor Specification(kw/V)
Total Weight
Platform Size
a Overall Length
b Overall Width
c Overall Height
d Wheel Base
Unit
m
m
m
kg
°
°
°
°
°
mm
km/h
m
mm
%
-
-
kW/（r/min）
kg
mm
mm
mm
mm
mm
Parameter
18.01
16.01
10.26
256/350
0~+65
-11~+75
-60~+70
360
160
0
5.5
1.9
300
45
Standard：33×12-20/7.5 solid tire Optional：315/55D20-18 Filled solid tire
Kubota V2403
36.8kW
8700
1830×760×1150
7640
2320
2380
2360
