Clamp type external line up clamp

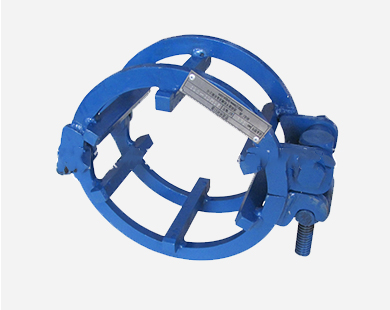

Manual single thread screw-rod-type external pipe line-up clamp
Manual single thread screw-rod-type external pipe line-up clamp
Manual single thread screw-rod-type external pipe line-up clamp
Mostly applicable for 6〞-10〞(168-273mm) pipe jointing operation.
Feature: easy operation, high efficiency (no needs to do adjustment), matching accuracy: unfitness of butt joint≤1 mm.
Model | Pipe Size | Cross Bar | Tighten force | Local adjust device |
WD168 | 6” | 6 pcs | 10T | 3 sets |
WD219 | 8” | 6 pcs | 10T | 3 sets |
WD273 | 10” | 6 pcs | 10T | 3 sets |
WD324 | 12” | 8 pcs | 10T | 3 sets |
WD355 | 14” | 8 pcs | 10T | 3 sets |
WD406 | 16” | 8 pcs | 10T | 3 sets |
WD508 | 20” | 10 pcs | 10T | 3 sets |
WD610 | 24” | 14 pcs | 10T | 3 sets |
WD711 | 28” | 14 pcs | 10T | 3 sets |
WD762 | 30” | 14 pcs | 10T | 3 sets |
WD813 | 32” | 14 pcs | 10T | 3 sets |
WD914 | 36” | 18 pcs | 10T | 3 sets |
WD1016 | 40” | 18 pcs | 10T | 3 sets |
WD1067 | 42” | 18 pcs | 10T | 3 sets |
WD1168 | 46” | 18 pcs | 20T | 3 sets |
WD1320 | 52” | 18 pcs | 20T | 3 sets |
