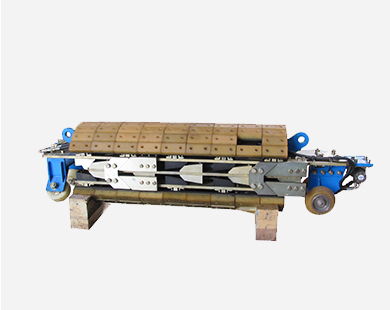

Hydraulic bending mandrel

1. Pipe bending mandrel application range: 10” - 62”

2. Pipe bending mandrel with wedge-form force transmission mechanism

3. Inner clamping hydraulic cylinder

4. SAUER DANFOSS cycloid hydraulic motor for traveling (applicable for pipe 20〞and above)

5. Scale polyurethane clamping shoes

Model	Applicable Range	Driving Mode	Working pressure	Remark
HPBM10	10”	Non-self propelled	10~16Mpa	We also offer pneumatic pipe bending mandrel
HPBM12	12”
HPBM14	14”
HPBM1618	16”~18”	Self propelled (pipe bending mandrel 16"~18" normally is non self propelled type)
HPBM2022	20”~22”
HPBM2426	24”~26”
HPBM2830	28”~30”
HPBM3234	32”~34”
HPBM3638	36”~38”
HPBM4042	40”~42”
HPBM4446	44”~46”
HPBM4850	48”~50”
HPBM5254	52”~54”
HPBM5456	54”~56”
HPBM5860	58”~60”
HPBM6264	62”~64”
