Welbee A350P
Welbee A500P (Coming soon)

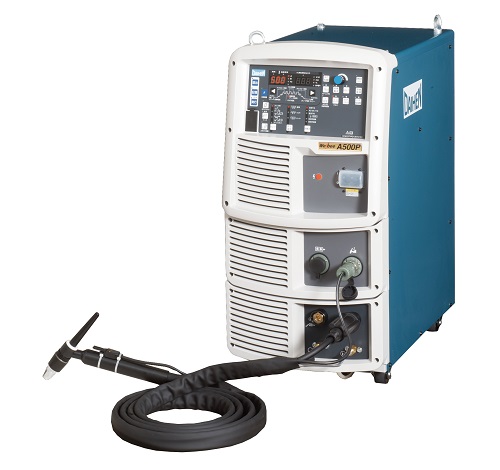

Welbee Inverter A500P
Digital Inverter Control Type
Pulse TIG pulse TIG welding machine
Widely compatible from ultrathin plate to thick plate!
Realize high efficiency and high quality
Pulse TIG pulse TIG welding machine
Characteristic
● High quality welding from ultrathin plate to thick plate
● High efficiency welding is realized with AC frequency of 500 Hz
● Automatic setting of welding conditions with "welding setting guide" function
● Compatible with Fieldbus Interface
Improve convenience when connecting an automatic machine
SPECIFICATIONS
Welding power supply | WB-A500P |
Rated input | three phase 380/400V |
Rated output | 500A |
Output adjustment range | AC5～500A / DC2～500A |
Rated utilization rate | 60% |
Mass (dimension) | 71kg(395×710×810mm) |
Welding torches | AWD-18、AW-12、AW-33 |
Torch adapter (for AW - 12, 33) | BBAWD-1201 |
Base metal side power cable | BKPDT-6003 |
Gas hose | BKGFF-0603 |
Water hose (for tap water) | BBDW-3001 |
Water hose (for water tank) | BBPU-3002 |
Gas flow rate regulator | V-F22AR |
